MockPlugin.Device.TrainPart Class Reference

The device part (well, train part) can't do much, just send status messages when the doors are opened/closed. More...

Inheritance diagram for MockPlugin.Device.TrainPart:

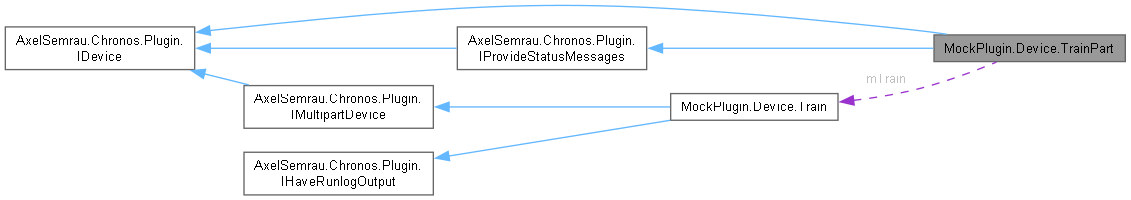

Collaboration diagram for MockPlugin.Device.TrainPart:

Public Member Functions
override string	ToString ()
	Important! Without overriding ToString here, you will not be able to pick the device from an autosampler column in the sample list.
void	Connect ()
	You may have connected to the device before this, but make sure you are connected after this.
void	Disconnect ()
	You may disconnect now.

Properties
string	DisplayedTypeName [get]
	Text which is displayed in the instruments settings "Autosampler Type" column and in many other places.
string	DeviceTypeDescription [get]
	Text which is displayed to make clear which kind of device a named sampler is.
string	Name [get, set]
	We have to return a descriptive name that also allows identification of the base device - just do it like the PAL3 and return BaseName + ":" + PartName.
int	Num [get, set]
bool?	DoorsOpen [get, set]

Events
Action< ConnectionState >	ConnectionStateChanged [add, remove]
	Not used.
Action< string >	SetStatusMessage
Events inherited from AxelSemrau.Chronos.Plugin.IDevice
Action< ConnectionState >	ConnectionStateChanged
	Raise this event when your connection state has changed.
Events inherited from AxelSemrau.Chronos.Plugin.IProvideStatusMessages
Action< string >	SetStatusMessage
	Raise this event to set your current status while doing something on the device. Messages passed to this event will be shown in the "Autosampler status" line.

Private Member Functions
string	BuildName ()

Private Attributes
readonly Train	mTrain
readonly TrainPartType	mMyType
bool	mDoorsAreOpen

Detailed Description

The device part (well, train part) can't do much, just send status messages when the doors are opened/closed.

Definition at line 76 of file Train.cs.

Member Function Documentation

BuildName()

string MockPlugin.Device.TrainPart.BuildName ( )

private

Definition at line 100 of file Train.cs.

        {
            switch (mMyType)
            {
                case TrainPartType.DiningCar:
                    return $"{mTrain.Name}:Diner";
                case TrainPartType.Locomotive:
                    return $"{mTrain.Name}:Locomotive";
                default:
                    return $"{mTrain.Name}:Car{Num}";
            }
        }

References mMyType.

Connect()

void MockPlugin.Device.TrainPart.Connect

(

)

You may have connected to the device before this, but make sure you are connected after this.

Implements AxelSemrau.Chronos.Plugin.IDevice.

Definition at line 113 of file Train.cs.

        {

        }

Disconnect()

void MockPlugin.Device.TrainPart.Disconnect

(

)

You may disconnect now.

Implements AxelSemrau.Chronos.Plugin.IDevice.

Definition at line 118 of file Train.cs.

        {

        }

ToString()

override string MockPlugin.Device.TrainPart.ToString

(

)

Important! Without overriding ToString here, you will not be able to pick the device from an autosampler column in the sample list.

Returns

References Name.

Member Data Documentation

mDoorsAreOpen

bool MockPlugin.Device.TrainPart.mDoorsAreOpen

private

Definition at line 129 of file Train.cs.

mMyType

readonly TrainPartType MockPlugin.Device.TrainPart.mMyType

private

Definition at line 79 of file Train.cs.

Referenced by BuildName().

mTrain

readonly Train MockPlugin.Device.TrainPart.mTrain

private

Definition at line 78 of file Train.cs.

Property Documentation

DeviceTypeDescription

string MockPlugin.Device.TrainPart.DeviceTypeDescription

get

Text which is displayed to make clear which kind of device a named sampler is.

Implements AxelSemrau.Chronos.Plugin.IDevice.

Definition at line 81 of file Train.cs.

DisplayedTypeName

string MockPlugin.Device.TrainPart.DisplayedTypeName

get

Text which is displayed in the instruments settings "Autosampler Type" column and in many other places.

Implements AxelSemrau.Chronos.Plugin.IDevice.

Definition at line 80 of file Train.cs.

DoorsOpen

bool? MockPlugin.Device.TrainPart.DoorsOpen

getset

Definition at line 130 of file Train.cs.

        {
            get => mDoorsAreOpen;
            set
            {
                if (value != mDoorsAreOpen)
                {
                    mDoorsAreOpen = value;
                    SetStatusMessage?.Invoke($"Doors are {(value ? "open" : "closed")}");
                    if (!value)
                    {
                        mTrain.ClosedSomeDoor();
                    }
                }
            }
        }

Name

string MockPlugin.Device.TrainPart.Name

getset

We have to return a descriptive name that also allows identification of the base device - just do it like the PAL3 and return BaseName + ":" + PartName.

Implements AxelSemrau.Chronos.Plugin.IDevice.

Definition at line 86 of file Train.cs.

        {
            get => BuildName();
            set { var dummy = value; }
        }

Referenced by ToString().

Num

int MockPlugin.Device.TrainPart.Num

getset

Definition at line 98 of file Train.cs.

{ get; set; }

Event Documentation

ConnectionStateChanged

Action<ConnectionState> MockPlugin.Device.TrainPart.ConnectionStateChanged

addremove

Not used.

Definition at line 150 of file Train.cs.

        {
            add {  }
            remove {  }
        }

SetStatusMessage

Action<string> MockPlugin.Device.TrainPart.SetStatusMessage

Definition at line 156 of file Train.cs.

---

The documentation for this class was generated from the following file:

• Train.cs
