MockPlugin.Tasks.MockUseMultipleDevicesTask Class Reference

For some special cases it can be necessary to have a single task communicate with two different devices. More...

Inheritance diagram for MockPlugin.Tasks.MockUseMultipleDevicesTask:

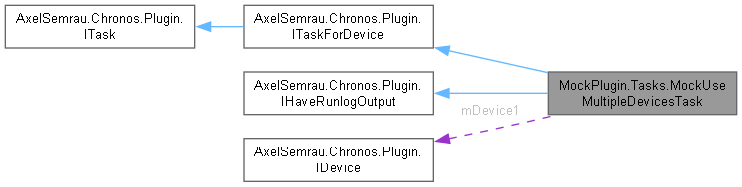

Collaboration diagram for MockPlugin.Tasks.MockUseMultipleDevicesTask:

Public Member Functions
void	PreValidate ()
	Called before the schedule construction is completed.
void	PostValidate ()
	Called after the schedule construction is completed.
void	Execute ()
	Showing how to use our device(s) from the task.
string	GetTaskAction ()
	Description of the tasks's action (for hints/time table)
void	SetDevice (IDevice yourDevice)
	Will be called by chronos when building the schedule.

Properties
IDevice	SecondCoffeeMakerOrPal3 [get, set]
IDevice	ThirdAnyDevice [get, set]

Events
Action< string >	WriteToRunlog
Events inherited from AxelSemrau.Chronos.Plugin.IHaveRunlogOutput
Action< string >	WriteToRunlog
	Use this event to send output to the Run Control / Runlog page and, if applicable, to the runlog file.

Private Member Functions
string	NameOrNotSet (IDevice dev)

Private Attributes
IDevice	mDevice1

Detailed Description

For some special cases it can be necessary to have a single task communicate with two different devices.

Definition at line 16 of file MockUseMultipleDevicesTask.cs.

Member Function Documentation

Execute()

void MockPlugin.Tasks.MockUseMultipleDevicesTask.Execute

(

)

Showing how to use our device(s) from the task.

Implements AxelSemrau.Chronos.Plugin.ITask.

Definition at line 35 of file MockUseMultipleDevicesTask.cs.

        {
            if (mDevice1 is IPAL3Services pal && pal.Simulating)
            {
                WriteToRunlog?.Invoke("Running simulation for validation");
            }
            else
            {
                WriteToRunlog?.Invoke($"Running {GetTaskAction()}");
                foreach (var dev in new[] {SecondCoffeeMakerOrPal3, ThirdAnyDevice}.OfType<MockDevice>())
                {
                        dev.SomeDummyMethod();
                }
            }
        }

References mDevice1, SecondCoffeeMakerOrPal3, AxelSemrau.Chronos.Plugin.IPAL3Services.Simulating, ThirdAnyDevice, and WriteToRunlog.

GetTaskAction()

string MockPlugin.Tasks.MockUseMultipleDevicesTask.GetTaskAction

(

)

Description of the tasks's action (for hints/time table)

Implements AxelSemrau.Chronos.Plugin.ITask.

Definition at line 51 of file MockUseMultipleDevicesTask.cs.

        {
            return $"Task for devices {NameOrNotSet(mDevice1)}, {NameOrNotSet(SecondCoffeeMakerOrPal3)}, {NameOrNotSet(ThirdAnyDevice)}";
        }

NameOrNotSet()

string MockPlugin.Tasks.MockUseMultipleDevicesTask.NameOrNotSet ( IDevice dev )

private

Definition at line 56 of file MockUseMultipleDevicesTask.cs.

        {
            return dev?.Name ?? "(not set)";
        }

References AxelSemrau.Chronos.Plugin.IDevice.Name.

PostValidate()

void MockPlugin.Tasks.MockUseMultipleDevicesTask.PostValidate

(

)

Called after the schedule construction is completed.

Implements AxelSemrau.Chronos.Plugin.ITask.

Definition at line 27 of file MockUseMultipleDevicesTask.cs.

        {

        }

PreValidate()

void MockPlugin.Tasks.MockUseMultipleDevicesTask.PreValidate

(

)

Called before the schedule construction is completed.

Implements AxelSemrau.Chronos.Plugin.ITask.

Definition at line 22 of file MockUseMultipleDevicesTask.cs.

        {

        }

SetDevice()

void MockPlugin.Tasks.MockUseMultipleDevicesTask.SetDevice

(

IDevice

yourDevice

)

Will be called by chronos when building the schedule.

Parameters

yourDevice

Implements AxelSemrau.Chronos.Plugin.ITaskForDevice.

Definition at line 62 of file MockUseMultipleDevicesTask.cs.

        {
            mDevice1 = yourDevice;
        }

References mDevice1.

Member Data Documentation

mDevice1

IDevice MockPlugin.Tasks.MockUseMultipleDevicesTask.mDevice1

private

Definition at line 18 of file MockUseMultipleDevicesTask.cs.

Referenced by Execute(), and SetDevice().

Property Documentation

SecondCoffeeMakerOrPal3

IDevice MockPlugin.Tasks.MockUseMultipleDevicesTask.SecondCoffeeMakerOrPal3

getset

Definition at line 70 of file MockUseMultipleDevicesTask.cs.

{ get; set; }

Referenced by Execute().

ThirdAnyDevice

IDevice MockPlugin.Tasks.MockUseMultipleDevicesTask.ThirdAnyDevice

getset

Definition at line 72 of file MockUseMultipleDevicesTask.cs.

{ get; set; }

Referenced by Execute().

Event Documentation

WriteToRunlog

Action<string> MockPlugin.Tasks.MockUseMultipleDevicesTask.WriteToRunlog

Definition at line 76 of file MockUseMultipleDevicesTask.cs.

Referenced by Execute().

---

The documentation for this class was generated from the following file:

• MockUseMultipleDevicesTask.cs
